Virgin PA6 PA66 Resin Nylon Granules PA66GF25 Polyamide Nylon 66 For Inject Molding
Product Introduction:
Modified nylon is a type of engineering plastics. It is a granular product formed by changing the physical properties of nylon raw materials as the base material. By adding 30% glass fiber to PA, the mechanical properties, dimensional stability, heat resistance, and aging resistance of PA are significantly improved, and the fatigue strength is 2.5 times that of unreinforced. Since the glass fiber will be oriented along the flow direction during the injection molding process, the mechanical properties and shrinkage rate will increase in the orientation direction, resulting in deformation and warpage of the product. Therefore, the mold design requires high technical content.
Advantage:
1. Competitive price, free samples, short delivery period.
2. Low smoke and other characteristics.
3. Good wear resistance,self-lubrication,long-term work at high temperature.
4. High CTI value,excellent electrical insulation.
5. Fast crystallization,fast forming,high temperature resistance.
6. Anti-ultraviolet radiation,anti-chemical agent corrosion.
7. High yield,easy start-up,and get less scrap in the early start-up stage.
8. No lack or incomplete of profiles in the production process.
9. There are different formulations for different shapes.
Application:

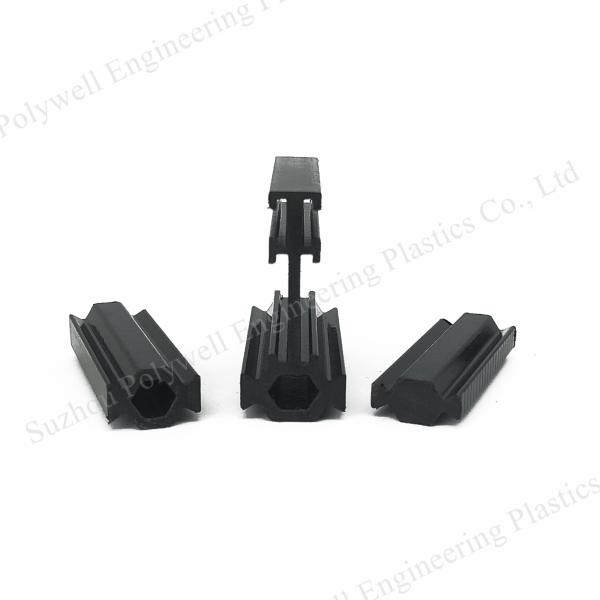

It is mainly used for nylon extruding profiles and nylon thermal break extruding strips. The granules produced by our company are special materials for nylon extruding profiles.There are different formulations for different shapes and complexities to ensure the smooth production of nylon profiles.
Details of related standard:
- GB/T 23615.1-2009 Accessorial material for architectural aluminum alloy profiles -- Part 1: Thermal barrier strip of polyamide
- EN 14024-2004 Metal profiles with thermal barrier -- Mechanical performance Requirement, proof and tests for assessment
- YS/T 437-2008 Aluminium profiles moment of inertia calculation methods and computing software requirements
- JG/T 174-2005 Thermal barrier strips for construction industry
- GB 5237.6 -2012 Wrought aluminium alloy extruded profiles for architecture -- Part 6: Thermal barrier profiles
- GB/T 8478-2008 Aluminium windows and doors
- GB/T 8484-2008 Graduation and test for thermal insulating properties of doors and windows
- JG 175-2011 Insulating aluminum alloy profiles with thermal barrier for buildings
Polywell PA66 Granules Performance Table
| NO. | Item | Unit | GB/T 23615.1-2009 | pw-Technical specification |
| | Material Properties |
| 1 | Density | g/cm3 | 1.3±0.05 | 1.28-1.35 |
| 2 | Linear expansion coefficient | K-1 | (2.3-3.5)*10-5 | (2.3-3.5)*10-5 |
| 3 | Vicat softening temperature | ºC | ≥230ºC | ≥233ºC |
| 4 | Melting point | ºC | ≥240 | ≥240 |
| 5 | Testing for tensile cracks | - | No cracks | No cracks |
| 6 | Shore hardness | - | 80±5 | 80-85 |
| 7 | Impact strength(Unnotched) | KJ/m2 | ≥35 | ≥38 |
| 8 | Tensile strength(longitudinal) | MPa | ≥80a | ≥82a |
| 9 | Elasticity modulus | MPa | ≥4500 | ≥4550 |
| 10 | Elongation at break | % | ≥2.5 | ≥2.6 |
| 11 | Tensile strength(transverse) | MPa | ≥70a | ≥70a |
| 12 | High temperature tensile strength(transverse) | MPa | ≥45a | ≥47a |
| 13 | Low temperature tensile strength(transverse) | MPa | ≥80a | ≥81a |
| 14 | Water resistance tensile strength(transverse) | MPa | ≥35a | ≥35a |
| 15 | Aging resistance tensile strength(transverse) | MPa | ≥50a | ≥50a |
1. Sample water content less than 0.2% by weight.
2. Norm laboratory condition:(23±2)ºC and (50±10)% relative humidity.
3. The specifications marked with "a" only applies to I-shape strip otherwise, the specifications concluded between supplier and buyer through consultation, shall be written in contract or purchase order.
Packaging & Delivery:
Packaging details:25kg/bag
Delivery details: shipped in 5-10 working days after receiving the payment
Our Company
Zhangjiagang Polywell Engineering Plastics Company is located in the city of Zhangjiagang, Jiangsu Province, China. Our company has devoted more than ten years to the research and development and production of nylon extruding profiles. According to customer reaction, using our PA66 granules for production can get high yiedl, easy start-up, and get less scrap in the early start-up stage. There will be no lack or incomplete of profiles in the production process, thus avoiding material waste.
